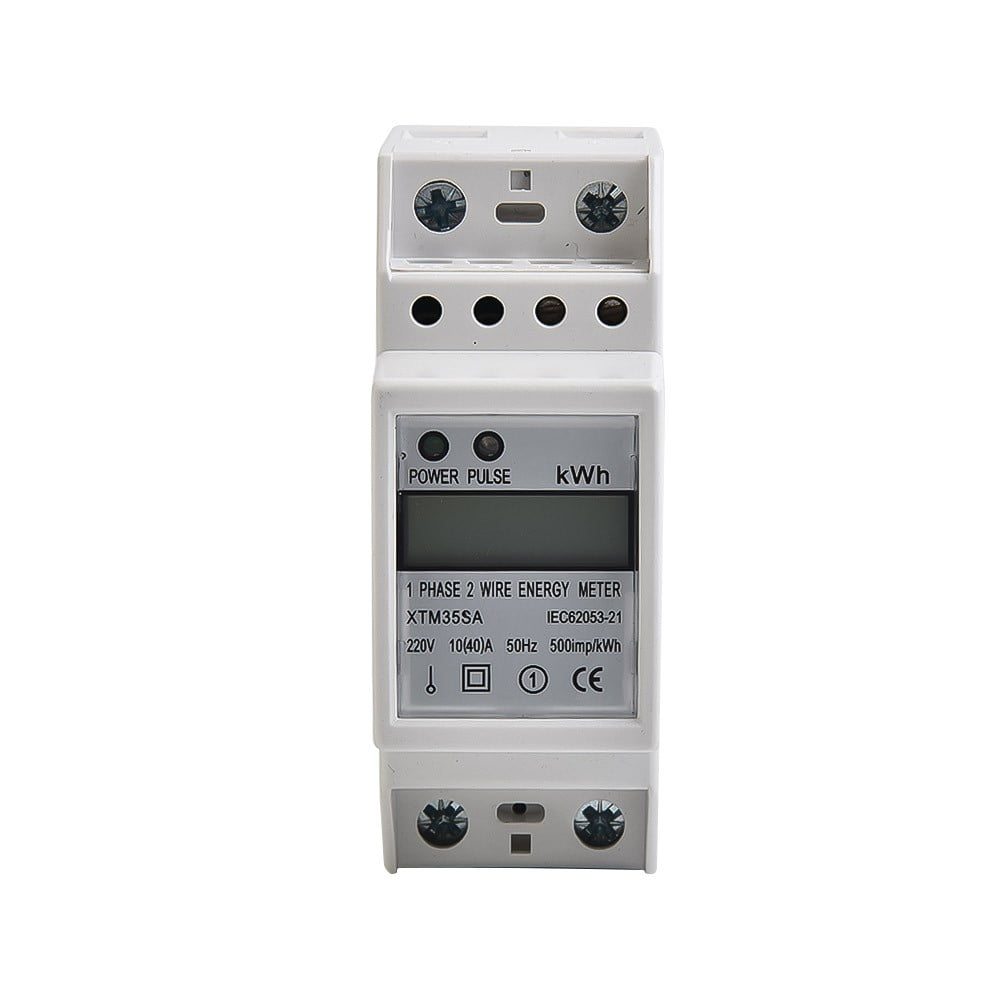

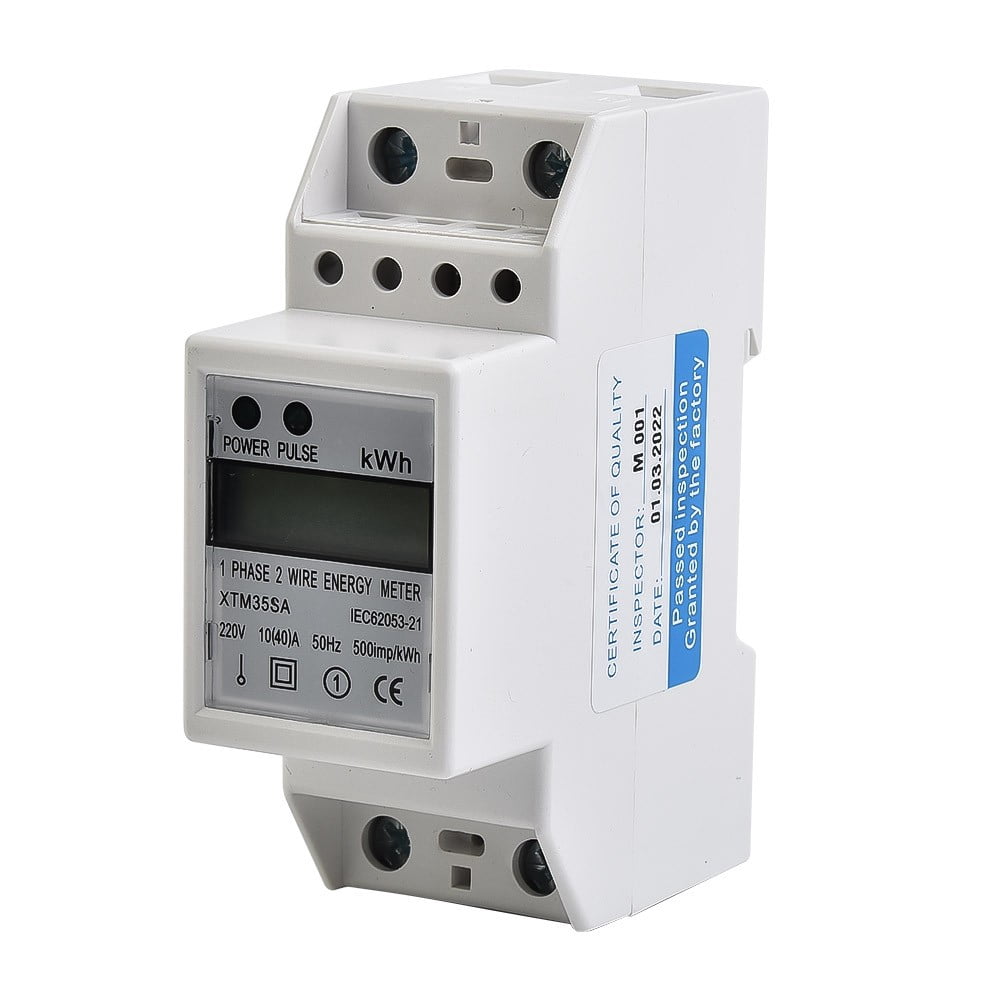

Xtm35Sa Digital Electric Energy Meter Din-Rail 220V Kwh Single Phase 2Wire 10-40A Lcd Guide Type Backlight Digits Wattmeter 10(40)A

<p><strong>Features:</strong></p><ul><li><p>*The meter can directly and accurately measure active energy of the energy consumption.</p></li><li><p>*LCD display is 7+1 digits meter shows the total power consumption.</p></li><li><p>*It features high reliability, small volume, light weight, beautiful appearance, advanced technology, etc.</p></li><li><p>*It has good anti-electromagnetic interference, low power consumption, high accuracy, high overload, high stability, anti electricity-stolen and long life.</p></li><li><p>*This energy meter is suitable for the measurement of rated frequency 50 Hz single-phase ac active electricity, etc.</p></li></ul><p><br><strong>Specification:</strong><br>Phase number: single phase<br>Type: guide type<br>Display mode: LCD<br>Reference current: 10(40)A<br>Rated voltage: 220V<br>Standard voltage: 120/ 230V AC<br>Operating voltage: 84-156V AC/ 161-300V AC<br>Insulating capacity:<br>AC voltage withstand: 4KV for 1 minute<br>Impulse voltage withstand: 6KV- 1.2μS waveform<br>al current range: 0.04A-60A/ 0.08A-100A<br>Over current withstand: 1800A/ 3000A for 0.01s<br>al frequency range: 50Hz±10%<br>Internal power consumption:≤2W/ 10VA<br>Test output flash rate(RED LED): 500 impulses per kWh<br>Pulse output rate(pins 20&amp; 21): 500 pulses per kWh<br>Power ply indicator(Green LED): Meter is connected to 120 or 230V/50Hz<br>Consumption indicator(RED LED): Flashing on load<br>Backlight LCD display: 7+1 digits<br>Maximum cable capacity: 25mm⊃2;<br>Operating humidity:≤85%<br>Storage humidity:≤95%<br>Operating temperature:-10°-+50°<br>Storage temperature:-30°-+70°<br>Accuracy class: 1<br>level: IP53<br>Color: White<br><br><br><strong>Package Included:</strong></p><p>1 x Din-rail Energy Meter</p><p><br></p>

• 【Accurate Energy Measurement】- This energy meter directly and accurately measures the active energy consumption, precise monitoring and calculation.
• 【LCD Display】- The 7-digit LCD display on this meter shows the total power consumption, allowing easy reading and tracking of energy usage.
• 【Reliable and Compact】- With high reliability, small volume, and light weight, this energy meter is not only practical but also aesthetically pleasing with its beautiful appearance.
• 【Advanced Technology】- Equipped with advanced technology, this meter offers good anti-electromagnetic interference, low power consumption, high accuracy, high overload capacity, and high stability. It is also resistant to electricity theft and has a long lifespan.
• 【Wide Application】- This energy meter is suitable for measuring rated frequency 50 Hz single-phase AC active electricity. It is designed for various applications that require precise energy monitoring and management.
