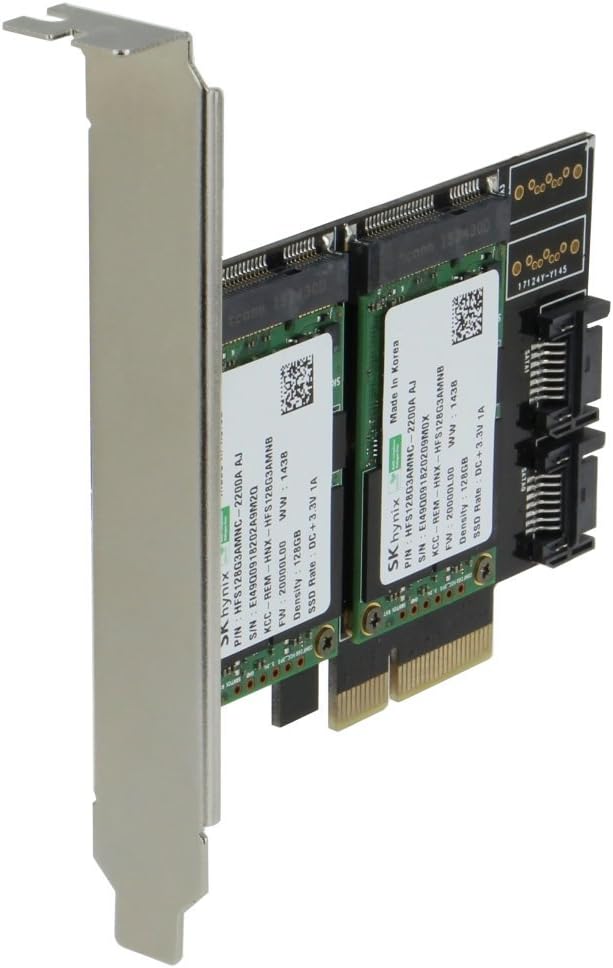

Sedna - PCIe Dual mSATA SSD Raid Adapter with 2 SATA III Port and HyoperDuo Hard Disk Acceleration Function (SSD not Included)

Features : ( All SSD in photos are for demo. only and is not included in the package ) Chipset: Marvell 88SE9230 support HyoperDuo Direct mounting of dual mSATA SSd on board 2 extra SATA III port for other devices RAID function supported HyoperDuo technology, with low capacity SSD can be used as accelerating cache drive for high capacity standard HDD, making a low cost combination of super fast big capacity storage system Specifications : PCIE 2 Port SATA III (6G) Port 2 Port support direct installation of 2 mSATA SSD 2 extra internal SATA III port for intallation of extra Hdd / SSD HyoperDuo technology for Hard disk acceleration PCI Express 2X Specification Rev. 2.0 2-Lane (x2) PCI-Express with transfer rate 5Gb/s Full Duplex channel Compliant with Serial ATA 3.0 Specification,Data transfer rate up to 6.0Gb/s Backward compatible with SATA1.0/SATA2.0 specification Support NCQ RAID Function: RAID 0-Striping (Stripe Size: 32K, 64K) RAID 1-Disk Mirroring RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K) HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized) Note: Not Supported RAID on PM Supported OS : Windows 10/8/7/Vista / XP/Server 2008/2003/ Linux 2.6X and up System Requirement : Available PCIE 2.0 2X,4X,8X or 16X slot on PC Supported OS Package Content : 1 x PCIE SATA III M2 SSD Raid adapter 1 x Software / Driver CD 1 x User Manual 1 x Low Profile Bracket

• Chipset: Marvell 88SE9230
• PCI-Express x4 Interface(actual x2 speed) is Compatible with PCI-Express x4, x8, and x16 slots
• Supports Native Command Queue (NCQ)
• Support RAID function: RAID0, RAID1,RAID1+0
• HyperDuo Mode Supports Safe Mode (Mirrored Protection), and Capacity Mode (Cost-Optimized)
