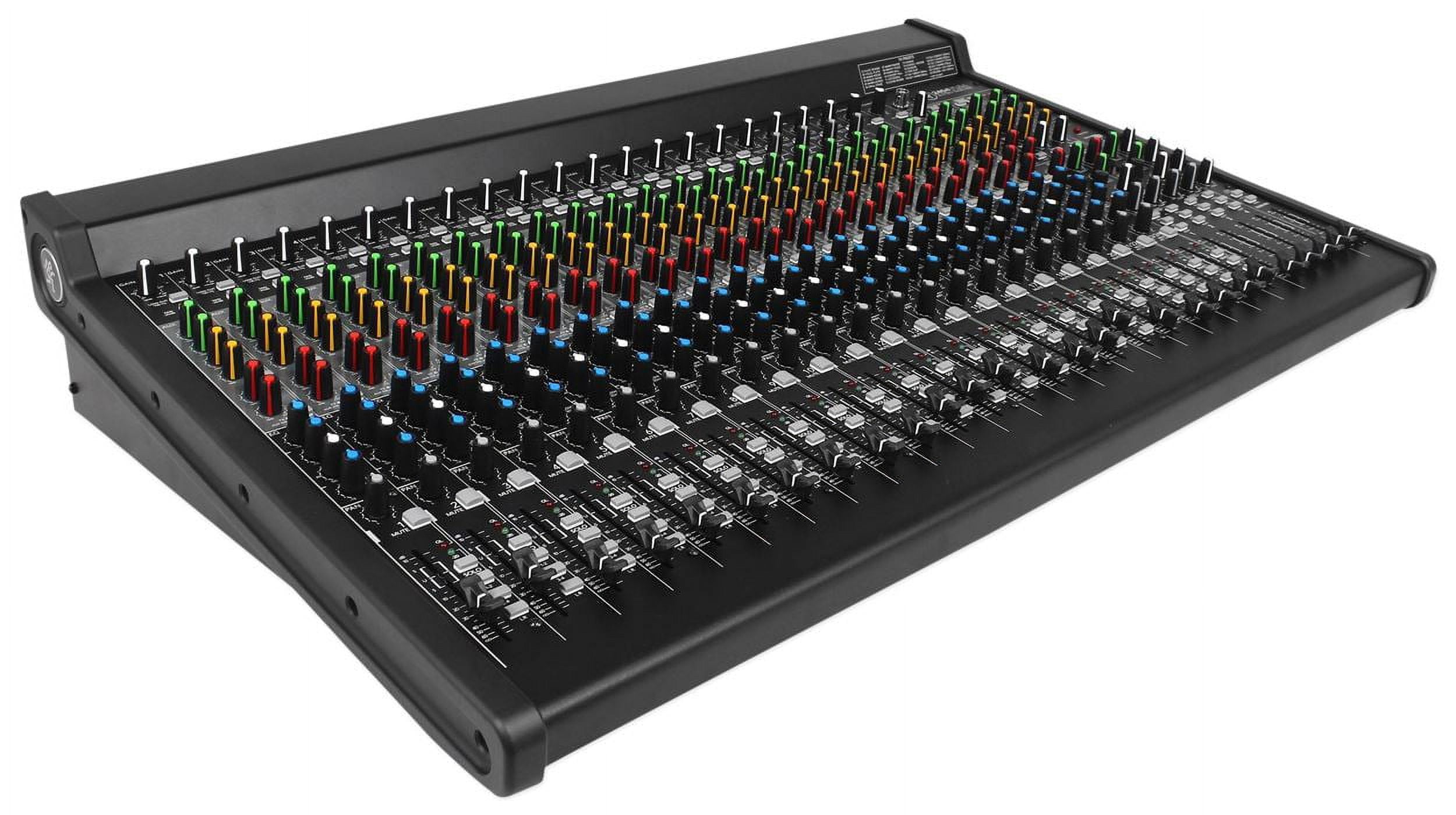

Mackie 2404VLZ4 24-channel 4-Bus FX Mixer w/ USB 2404-VLZ4

<p><strong>Description:</strong></p> <p> The Mackie 2404VLZ4 is a 24-channel, 4-bus analog mixer designed for professional audio applications. It features high-headroom, low-noise circuitry and includes 20 Onyx microphone preamps with wide gain range and extended frequency response. The mixer supports phantom power for condenser microphones and provides comprehensive routing and control options for live sound, recording, and broadcast environments. </p> <p> The mixer includes a 3-band EQ with sweepable midrange on mono channels and low-cut filters to help manage low-frequency content. Dedicated channel controls include level, pan, solo, and mute functions. Multiple aux sends support monitor mixes and effects routing. </p> <hr> <p><strong>Key Features:</strong></p> <ul> <li>24-channel 4-bus analog mixer</li> <li>20 Onyx microphone preamps with 60 dB gain range</li> <li>High-headroom, low-noise circuit design</li> <li>3-band EQ with sweepable midrange on mono channels</li> <li>18 dB/octave low-cut filter on mic inputs</li> <li>Six aux sends with pre/post fader options</li> <li>Four subgroups with routing control</li> <li>Integrated 24-bit USB audio interface</li> <li>High-resolution stereo output metering</li> <li>Steel chassis with sealed rotary controls</li> </ul> <hr> <p><strong>Audio Performance:</strong></p> <ul> <li>Frequency response: 20 Hz to 50 kHz (mic input to main output)</li> <li>Total harmonic distortion: <0.005% (mic to main output)</li> <li>Equivalent input noise: -128.5 dBu (mic input, max gain)</li> <li>High headroom design for professional signal levels</li> </ul> <hr> <p><strong>Connectivity:</strong></p> <ul> <li>20 microphone inputs with phantom power</li> <li>High-headroom line inputs with insert points</li> <li>Main mix and subgroup outputs</li> <li>USB 1.1 audio interface with 24-bit conversion</li> <li>Aux sends and stereo returns for external devices</li> </ul> <hr> <p><strong>Physical Specifications:</strong></p> <ul> <li>Width: 29.4 inches</li> <li>Depth: 19.1 inches</li> <li>Weight: 31.0 lbs</li> <li>Rack-mountable mixer design</li> </ul>

• Onyx Preamps And Headroom: 20 Onyx mic preamps with up to 60 dB gain, 128.5 dB dynamic range, and low-noise summing architecture for clean vocals, drums, and instruments.
• Channel Control And EQ: 24-channel 4-bus layout with 3-band EQ and sweepable mids, 18 dB/oct 100 Hz low-cut on mic channels, plus level, pan, solo, and overload/mute LEDs per channel.
• Built-In Compression And Routing: Inline channel compression on channels 17-20 plus 4 subgroups with dedicated inline compressors, 2 stereo returns, 4 group outs with inserts, and PFL/AFL solo modes.
• FX And USB Recording: Dual 32-bit RMFX+ processors with 24 gig-ready reverbs, chorus, and tap delay, plus integrated 4x2 24-bit USB interface to send subgroups or main L/R to Mac or PC at 44.1/48 kHz.
• Rugged Mixer For Work: Steel wrap-around chassis, sealed rotary controls that resist dust and grime, 60 mm long-wearing faders, 12-segment stereo meters, improved RF rejection, phantom power, and universal power supply.
