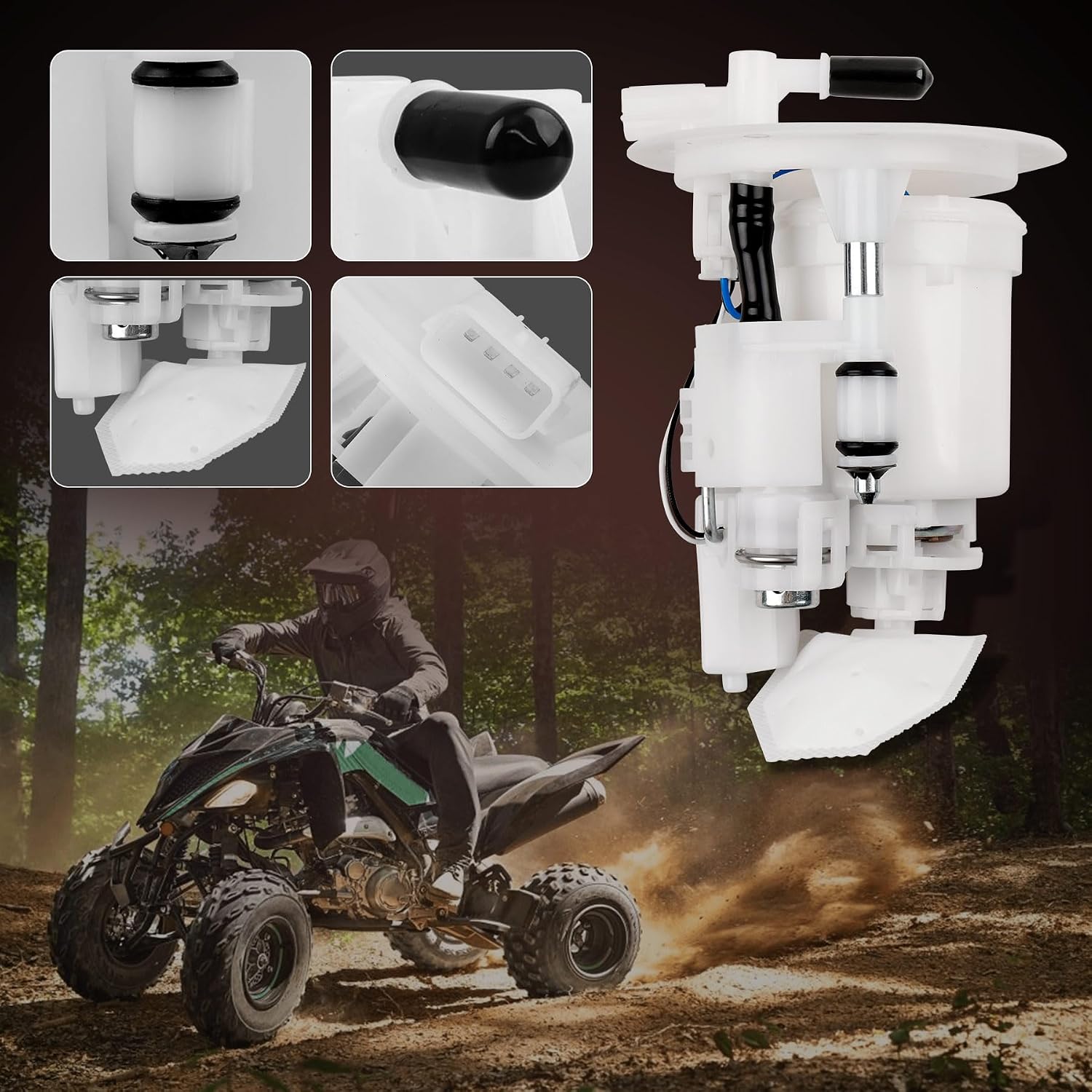

1S3-13907-10-00 Fuel Pump Assembly Replacement for Yamaha Raptor 700 YFM700 2006-2020 / Raptor 700R YFM700R 2009-2020 Replaces# 1S3-13907-00-00 1S3-13907-01-00 1S3-13907-02-00 1S3-13907-11-00
Product details
| Management number | 222187802 | Release Date | 2026/05/04 | List Price | US$22.00 | Model Number | 222187802 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description**Verify the part fits before purchasing**【Product Specifications】Fuel Pump Complete Module Replaces OEM Numbers:1S3-13907-00-00,1S3-13907-01-00,1S3-13907-02-00,1S3-13907-10-00, 1S3-13907-11-00, 1S3-13907-12-00.Compatible With/Replacement For:Yamaha Raptor 700 2006-2020Yamaha Raptor 700R 2009 2011-2020Yamaha Raptor 700R SE 2014-2020【Installation Instructions】1. Verify the replacement pump matches the original pump assembly before installation.2. Install the new seal ring and pump assembly securely into the fuel tank.3. Use a transmission jack to lift the tank slightly, allowing reconnection of fuel hoses, electrical connectors, and emissions hoses.4. Reattach the fuel filler neck and fasten it with the clamp.5. Secure the fuel tank straps and tighten mounting bolts to factory torque specifications.6. Reconnect the negative battery cable to finish the installation.【Important Notes】1. Always disconnect the vehicle’s negative battery cable before installation to prevent electrical shorts.2. Handle the seal ring carefully during installation to maintain proper sealing and prevent fuel leaks.3. Tighten mounting bolts to the specified torque to avoid damage or loosening.4. After installation, check all fuel lines and electrical connections to ensure they are secure and leak-free.
- Perfect Fit Compatibility – Designed to directly replace the OEM fuel pump assembly on Raptor 700 (2006–2020) and Raptor 700R (2009–2020), ensuring an exact fit with no modifications.
- OEM Part Replacement – Replaces part number 1S3-13907-10-00 1S3-13907-00-00 1S3-13907-01-00 1S3-13907-02-00 1S3-13907-11-00 1S3-13907-12-00, providing a reliable and cost-effective solution for restoring factory-level performance.
- Improves Engine Performance – Eliminates common fuel delivery issues such as poor acceleration, engine sputtering, or stalling — ensures consistent fuel pressure for smoother throttle response.
- Durable & Reliable Construction – Built from high-quality materials that resist wear and corrosion, delivering long-lasting performance even in off-road or high-vibration environments.
- Plug-and-Play Installation – Comes pre-assembled and ready to install, with OEM-style connectors for a quick and easy replacement that gets you back on the trail faster.
- Off-Road Ready – Engineered for rugged use and extreme conditions, making it ideal for racing, trail riding, or tough terrain adventures.
- Restore Fuel Efficiency – Helps optimize combustion and reduce fuel consumption by ensuring consistent fuel flow to your engine.
| Fit Type | Vehicle Specific Fit |
|---|---|
| Brand Name | ATRACYPART |
| Item Weight | 1.32 Pounds |
| Manufacturer | ATRACYPART |
| Body Material | Alloy Steel |
| Material Type | Stainless Steel |
| Mounting Type | Tank Mount |
| Product Grade | Replacement Part |
| Connector Type | Quick Connect |
| Operation Mode | Automatic |
| Specification Met | OE |
| Auto Part Position | Center |
| Automotive Fit Type | Vehicle Specific Fit |
| Inlet Connection Type | Quick Connect |
| Outlet Connection Size | 5 Inches |
| Outlet Connection Type | OEM |
| Manufacturer Part Number | A3581 |
| Compatible with Vehicle Type | ATV |
| Manufacturer Warranty Description | 2 Year Manufacturer |
