1.3inch LCD Display Module, Embedded ST7789 Driver, 240×240 Resolution IPS Screen 65K RGB Color SPI Interface,for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B, a Joystick and Six Buttons

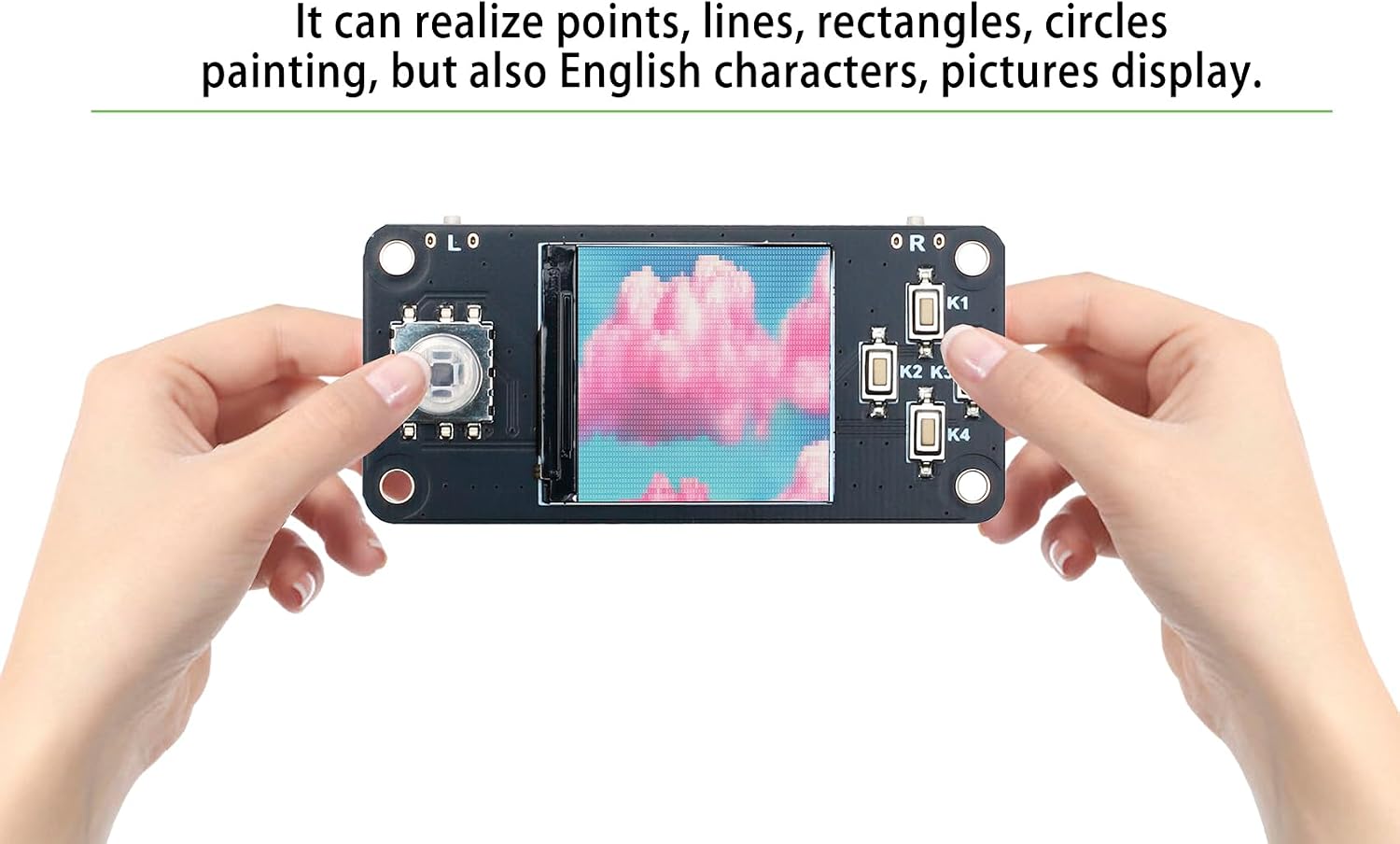

Overview: This LCD is a 1.3-inch TFT display, onboard a joystick and six buttons, resolution of 240*240, internal ST7789 controller, based on compatible with Raspberry Pi 40pin GPIO connector design, intended for Raspberry Pi Zero/Zero W/Zero 2W/Zero WH/2B/3B/3B+/4B, can use SPI interface communication, provide for Raspberry Pi C, python version of the demo codes, it can realize points, lines, rectangles, circles painting, but also English characters, pictures to display. Product parameters: Dimensions: 65mm(L)*30.3mm(W) Resolution: 240*240 Display Colors: RGB，65K colors Control chip: ST7789 Screen type: TFT Backlight: LED Interface: 4 Line SPI Supply Voltage: 3.3V Operating Temp: -20℃～+70℃ Storage Temp: -30℃～+80℃ LCD display area: 23.4mm (W)*23.4mm (H) Interface definition: VCC: VDD(3.3V) GND: GND SDA: SPI data input SCK: SPI clock input CS: SPI chip selection, active at low level BL: backlight control D/C: Display data/command selection pin in 4-line serial interface RESET: Display screen reset, active at low level K1: User key K1 K2: User key K2 K3: User key K3 K4: User key K4 SW1: User key L SW2: User key R S1: Jointed arm Package contents: 1.1.3inch LCD Display*1 2. Copper pillars x2 3. Screws x2 4. Nut x2

• 1.1.3inch LCD Display for Raspberry Pi Zero/Zero W/Zero 2W/Zero WH/2B/3B/3B+/4B,embedded ST7789 driver;
• 2.240×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect;
• 3.SPI interface, less pin occupation, Backlight: LED, Operating voltage: 3.3V;
• 4.Onboard a joystick and six buttons,based on compatible with Raspberry Pi 40pin GPIO connector design;
• 5.Provides open source demo codes that can be intended for the Raspberry Pi development board.
