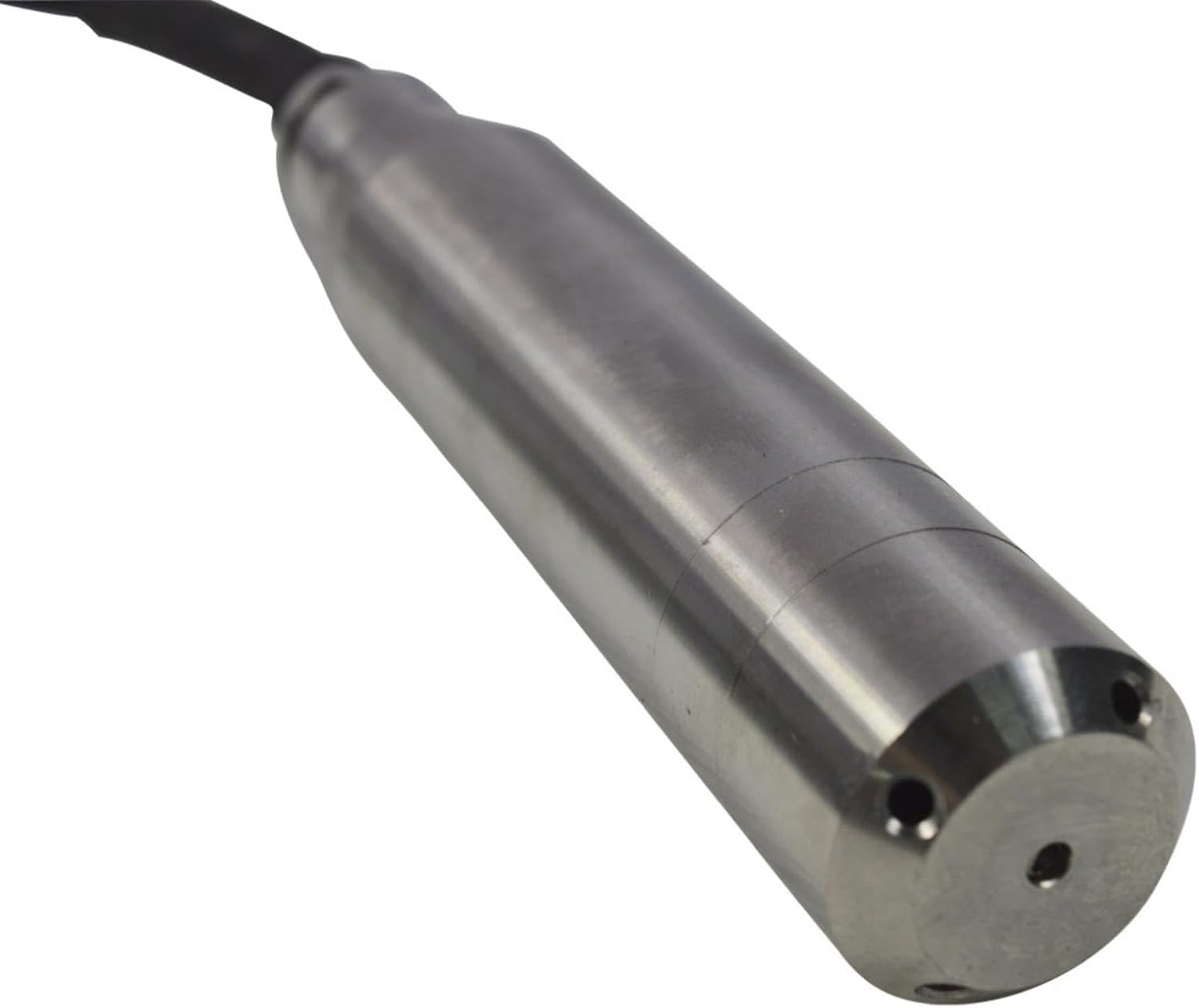

0-10 M Pressure Range, 24-32 VDC Power SupplySmart Water Level Sensor, 100 kPa Submersible Liquid Level Transmitter, 4-20 mA Water Level Sensor Pressure Transducer

PARAMETERS:Measurement Range: 0-10mH2O/100kPaCable Length: 10 metersMeasurement Medium:WaterPower Supply:24-32VDCOutput Signal:4-20mAAccuracy:±0.5%FSOverload Capacity:Two times full-scale pressureUsing Temperature:0℃—70℃Compensation Temperature Range:0℃—60℃ZTC: (typical)：±0.02%FS/cSTC: (typical)：±0.02%FS/cLong-term Stability (typical)：±0.1%FS/yearWaterproof Class：IP68Load Resistance：less than (U-10)/0.02ΩShell Material：316L stainless steelExplosion-proof Type: Exia II CT6

• Material and Function : The liquid level gauge housing is made of 316L stainless steel,and equipped with a 10 meter waterproof cable. The liquid level sensor is suitable for detecting water levels in the range of 0-10m.
• High Accuracy : Under complex electromagnetic environmental conditions, it can implement anti electromagnetic interference and provide accurate water level detection and monitoring. This ensures higher reliability and optimal performance.IP68 waterproof protection ensures safety and long-term use.
• Attention : The measuring medium should be compatible with stainless steel. Do not connect wires when powered on. Check the connecting wires before powering on. Regularly remove sediment from the probe to avoid blockage. Sensors are precision components, please do not disassemble them, and do not touch the diaphragm to prevent breakage.
• Protection Function : With protection against surge voltage, overvoltage, overcurrent, and reverse polarity.
• Multi Site Applicability : Water tank level gauges can be widely used in water plants, sewage treatment plants, urban water supply, high-rise water tanks, wells, industrial water tanks, water tanks, reservoirs, rivers, oceans and other places.
